Standar Operasional Prosedur Permasalahan Sendi Pergelangan Kaki

(1)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 1 SOP-Ankle Joint ID#ARA 01 Rev 1# 13 Mei 2015 30 Halaman

Standar Operasional Prosedur

Permasalahan Sendi Pergelangan Kaki

SOP - Ankle & Foot Problems

Diperuntukkan pelayanan ARA Physiotherapy UPH-Karawaci & Bodysoul-Kemang

Rev 1# 13 Mei 2015

Disusun Oleh

(2)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 2 1. Anatomi 1.1Tulang 1.1.1 Tibia 1.1.2 Fibula 1.1.3 Talus 1.1.4 Calcaneus 1.1.5 Navicular 1.1.6 Cuboid 1.1.7 Cuneiform 1,2,3,& 4 1.1.8 Metatarsal 1,2,3,4,&5 1.1.9 Phalang1,2,3,4,&5

Gambar 1.1 Kaki kanan tampak atas

Gambar 1.2 Kaki kanan tampak bawah

Gambar 1.3 kaki kanan tampak belakang (posterior)

1.2Sendi

1.2.1 Tibiafibular joint inferior 1.2.2 Tibiotalar joint

1.2.3 Calcaneofibular joint 1.2.4 Talocalcaneal joint 1.2.5 Talofibular joint

(3)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 3 1.3Ligamen 1.3.1 tibiofibular ligament 1.3.2 tibiotalar ligament 1.3.3 talofibular ligament 1.3.4 calcaneofibular ligament

1.3.5 posterior tibiofibular ligament 1.3.6 posterior talofibular ligament 1.3.7 posterior talocalcaneal ligament 1.3.8 deltoid ligament

Gambar 1.4 Ligamen kaki kanan sisi belakang (posterior) Gambar 1.5 Ligamen kaki kanan sisi depan

Gambar 1.6 Ligamen kaki kanan sisi lateral Gambar 1.7 Ligamen kaki kanan sisi medial Interosseous membrane Posterior tibiofibular ligament Posterior talofibular ligament calcaneofibular ligament deltoid ligament

talofibular ligament tibiotalar ligament

talofibular ligament Interosseous

(4)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 4

Gambar 1.8 ligamen kaki kanan sisi medial Gambar 1.9 ligamen kaki kanan sisi plantar

1.4Otot

Gambar 1.10 Otot Ekstremitas bawah kanan sisi anterior

Gambar 1.11 Otot ekstensor pergelangan kaki kanan sisi anterior

(5)

Gambar 1.12 Otot ekstensor halluces longus & tibilais anterior

(6)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 6 Gambar 1.14 Otot ekstremitas bawah sisi posterior Gambar 1.15 Otot ekstremitas bawah sisi posterior

dengan plantar fleksi (a)

Gambar 1.16 Otot ekstremitas bawah sisi posterior dengan plantar fleksi (b)

Gambar 1.17 Otot ekstremitas bawah sisi posterior dengan plantar fleksi (c)

(7)

Gambar 1.18 Tendon ekstremitas bawah sisi posterior & anterior

(8)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 8 1.5Biomekanika 1.5.1 Plantar fleksi 1.5.2 Dorsal fleksi 1.5.3 Inversi 1.5.4 Eversi

1.5.5 Convex to concave law (Talocrural dorsal or posterior glide increases dorsiflexion & Talocrural ventral or anterior glide increases plantarflexion)

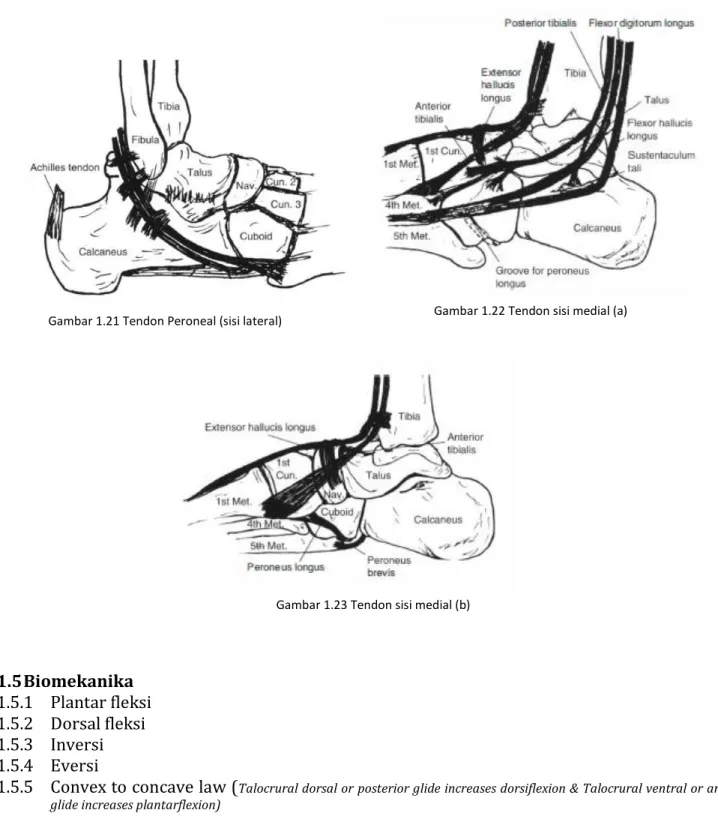

Gambar 1.21 Tendon Peroneal (sisi lateral) Gambar 1.22 Tendon sisi medial (a)

(9)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 9 Gambar 1.24 Gerakan normal dorsiflexi dan plantar flexi Gambar 1.25 Gerakan normal dorsiflexi saat berjalan

(10)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 10 2. Pemeriksaan

2.1Ottawa Rule Test

Pemeriksaan dengan memberikan tekanan pada area fibula, posterior tibia, cuboid & navicular. Ditujukan untuk mengetaahui adanya faktur atau patah pada tulang yang di sekita sendi ankle.

Gambar 2.1 Area Ottawa Rule test

2.2Pemeriksaan Spesifik / Tes Khusus

Pemeriksaan khusus untuk mengetahui kesobekan pada sendi ankle.

Gambar 2.2 (A) Anterior Drawer Test (ADT) khusus ligament anterior fibular ligament (ATFL) dilakukan pada posisi lutut fleksi. Sendi ankle pada posisi 10o_-15o_{plantar fleksi dan Fisioterapis menarik tumit ke}

anterior dan menahan tulang tibia. (B) Talar tilt test untuk ATFL & calcaneofibular ligament (CFL) dilakukan posisi sendi netral. Tumit posisi stabil saat mendorong sendi ke arah inversi talus dan

(11)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 11 Gambar 2.3 Pemeriksaan khusus cedera pada sindesmosis. Pemeriksaan akan ditemui rasa nyeri pada area sindesmosis. (A) Kleiger test/External Rotation test dilakukan dengan menahan tibia dan lakukan external rotasi pada ankle. (B) Squeeze test, dengan memberikan tekanan pada tibia dan fibula di atas pertengahan calf. (C) Crossed Leg test, menyilangkan kaki pada kaki lainnya dan memberikan dorongan

ke bawah pada lutut. 2.3Antropometri

Pengukuran khusus pada sendi ankle adalah dengan melakukan antropometri Figure 8, ditujukan untuk mengetahui seberapa besar bengkak pada sendi ankle.

A B

Gambar 2.4 Pengukuran antropometri bengkak sendi ankle. (A) sisi medial, dimana pangkal meteran diletakkan pada sisi maleous lateral kemudian dikelilingkan pada navicular, plantar dan cuboid. (B) sisi lateral, dari cuboid

(12)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 12 2.4Range Of Motion

(13)

(14)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 14 2.5Accessory Movement test dan Manual terapi

(15)

(16)

(17)

(18)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 18 3. Diagnosa & Protokol

(19)

(20)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 20 3.1Sprain Ankle

Sprain ankle merupakan kesobekan ligamen sendi ankle pada sisi lateral dan medial. Mekanisme cedera persendian ankle overstretch kea rah inversi (lateral) & eversi (medial).

Gambar 3.1 Lateral sprain ankle

(21)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 21 Lateral Sprain Ankle Protocol

ATFL & CFL tear

Grade 1 pemulihan 2- 4 minggu, Grade 2 (partial)-3 (total) pemulihan 4-8 minggu Frekuensi terapi 3-4 kali/minggu

Phase I: Fase Akut (0-3 days) Goal

 Pain & swelling control

 Prevent tibialis anterior & calf atrofi  Protect Ligament

 Manual Muscle Test 3 point  Normal dorsal flexi when walking Physiotherapy Programs:

 RICE

 US & FUP/TENS 10 menit

 Distraction grade III (pain free) 60 x, 10 sec rest, 2 sets

 Dorsal glide grade III (pain free) 60 x, 10 sec rest, 2 sets

 Tibiafibular dorsal glide III (pain free) (stop when sindesmosis finding) 60 x, 10 sec rest, 2 sets

 Dorsal & Plantar Flexi isometric 6 sec, 10x, 2 sets

 Towel exc 3 sets

 Tapping/Brace (1 week) Outcome Clinical finding:

 Increase ROM Dorsal flexi  Decrease pain dorsal flexi

 Increase step speed, step length, & single support time (bertumpu)

Phase 2: Poliferasi 1 (3day- 1week) Goals:

 Normal ROM  Reduce Pain  Normal gait

 Balance & postural stability

 Prevent peroneus syndrome/compartmend syndrome with ankle brace 1 week

Physiotherapy Program:  US 5 menit

 PROM (pain free) 30 x, 3 sets

 Calf & soleus stretch NWB (pain free) 30 sec, 3 sets (edu 3x/hari)

 Calf & soleus stretch WB c/ decline (pain free) 30 sec, 3 sets (edu 3x/hari)

 Alphabet exc (A,B, &C) 5 x, 2 sets (edu 3x/hari)

 Distraction grade IIIII (pain free) 60 x, 10 sec rest, 2 sets

 Dorsal glide grade IIIII (pain free) 60 x, 10 sec rest, 2 sets

 Tibiafibular dorsal glide IIIII (pain free) 60 x, 10 sec rest, 2 sets

 Ankle exc isometric 6 sec, 5 x, 2 set  Ankle exc isotonic (rubber) 10x, 2 sets  Bilateral calf & soles raise 10x,2 set  Walking on heel & toes 2 lap  Towel exc 3 sets

 Ankle rhytm 15 sec, 2-3 sets

 Circular wobble board (Clock & counter clock wise) bilateral & unilateral stance 10 x, 3 sets

 Walking on different surface (flat, soft, & unstable) 10 x, 4 set

 Level 1 run program Outcome Clinical finding:

 Romberg Test  SEBT

(22)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 22 Phase 2: Poliferasi ( 2-3 week)

Goals:

 Normal ROM  No Pain  Normal gait  MMT 4 point  Lower Leg Stability Physiotherapy Program:

 Calf & soleus stretch NWB (pain free) 30 sec, 3 sets (edu 3x/hari)

 Calf & soleus stretch WB c/ decline (pain free) 30 sec, 3 sets (edu 3x/hari)

 Distraction grade IIIII (pain free) 60 x, 10 sec rest, 2 sets (stop when no pain & functional increase)  Dorsal glide grade IIIII (pain free) 60 x, 10 sec

rest, 2 sets

 Tibiafibular dorsal glide IIIII(pain free) 60 x, 10 sec rest, 2 sets

 Ankle exc isotonic (rubber) 10x, 3sets

 Bilateral calf & soles raise 10x,2 set (c/progress weight)

 Walking on heel & toes 2 lap  Towel exc 3 sets

 Circular wobble board (Clock .counter clock wise, front & back board no touch the floor) bilateral & unilateral stance 10 x, 3 sets

 Wobble board unilateral touch 3 cone15-20x, 3 set  Squat with heel raise on bosu with passing 10x, 3

set

 Unilateral stance on bosu 30 sec, 3 set

 Hip adduction with stance on unstable surface (spons) 10x 3 set

 1 leg dead lift 10x, 2 set  Basic core 30 sec, 2 set  Four square hopping

 Side to side 10x, 2 set

 Front to back 10x, 2 set  Straight line hop 10x 2 set  Level 2 or 3 run programs Outcome Clinical finding:

 SEBT

Phase 3: maturation/functional (3-4weeks) Goals:

 No pain  Return to sport Physiotherapy program:

 Calf & soleus raise w/ weigth 10x, 3 sets  Ankle press 10x, 2-3 sets

 Forward & Side walk c/rubber on ankle 10x, 2-3 set

 Wobble board unilateral touch 3 cone15-20x, 3 set  Squat with heel raise on bosu with passing 10x, 3

set

 Unilateral stance on bosu 30 sec, 3 set

 Front & Side Lunge 10x 2 set  Front & Drop Jump 10 x 2 set  Four square hopping

 Four square 5x, 2 set

 Triangles 5x, 2 set

 Crisscross 5x, 2 set  Line zigzag 10x 2 sets Outcome Clinical Finding:

(23)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 23 3.2Sindesmosis

Sindesmosis (high ankle sprain) adalah cedera sendi ankle sisi lateral yang megalami kesobekan ligament interesous membrane, ATFL & PTFL. Cedera ini sulit diprediksi pemulihannya karena letak impairmennya yang diantara tulang fibula dan tibia. Mekanisme cedera ini selalu tulang tibia rotasi medial dan ankle rotasi ke lateral, sehingga menyebabkan gerakan fibula ke lateral yang berdampak pada sobeknya ligament interoseus bahkan bias mematahkan tulah fibula.

Pemeriksaan khusus yang digunakan untuk kasus ini adalah kleiger test, squeeze test & crossed leg test.

(24)

(25)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 25 Sindesmosis Protokol

Target pemulihan 55 hari/ 6 minggu Frekuensi 3-4x / minggu Phase 1 Acute 3-1 minggu

Goal:

 Control pain & swelling

 Protect joint Note:

 Non Weight Bearing 3 day

 Avoid painfull dorsiflexion & eversion Physiotherapy Programs:

 RICE

 Distraction grade III (pain free) 60 x, 10 sec rest, 2 sets

 Dorsal glide grade III (pain free) 60 x, 10 sec rest, 2 sets

 Lateral glide 60 x, 10 sec rest, 2 sets

 Towel exc 3 sets

 Tapping/Brace (1 week)

 Hip exc 10-15x, 3 sets Clinical outcome

 No painfull dorsal flexi & eversi

Phase 2 sub acute (1-2 minggu) Goals:

 Maintain ROM & improve flexibility

 Progressing weight bearing

 Strength & balance

 Prevent atrofi gastroc & soleus muscle

Note:

 Continue crutches for weight bearing

Physiotherapy Prorams:

 Stretch gastroc, soleus & hamstring 15-20 sec, 2 sets

 

 Lateral glide ) 60 x, 10 sec rest, 2 sets

 Proximal & distal tibia fibular glide 60 x, 10 sec rest, 2 sets

 Seated heel raise c/ weigth 10-15x, 3 sets

 Ankle rhytm/seated toe raise 15-20 sec, 3 sets

 Isotonic ankle exc c/rubber 10-15x, 3 sets

 Squat balance board/wobble 10-15x, 15 sec hold, 3 sets

 1 leg bridge 10-15x, 15 sec hold, 3 sets

 Wobble board exc (anteroposterior, clockwise & counter clockwise)

Clinical outcome

 Full ROM

(26)

Phase 3 srengthening Goal:

 Maximal strength

 Neuromuscular control

 Single limb exercise Note:

 Full weight bearing still use ankle brace Physiotherapy prorams:

 Advance ankle exc isotonic c/rubber 20x, 3 sets

 Standing heel raise (calf & soleus muscle, double & single limb) c/weight 10-15x, 3 sets

 Forward & side lunges 10-15x, 3 sets

 Ankle press 10-15x, 3 sets

 Side walk straight leg c/rubber 10-15x, 3 sets

 Single leg wobble touch cone 15-20x, 3 sets

 Single leg wobble passing/kick 15-20, 3 sets

 Single leg deadlift 10-15x, 2-3 set

 Treadmill 10-15 minute

Clinical outcome:

 SEBT

Phase 4 return to sport Goal:

 Dynamic & proprioception exc

 No pain when jog & run

 No pain when cutting, pivoting, & specific drill

Note:

 Sum total of return to sport criteria

Physiotherapy programs:

 Standing heel raise (calf & soleus muscle, double & single limb) c/weight 10-15x, 3 sets

 Forward & side lunges 10-15x, 3 sets

 Side walk straight leg c/rubber 10-15x, 3 sets

 Single leg wobble passing/kick 15-20, 3 sets

 Single leg deadlift 10-15x, 2-3 set

 Four square hopping

 Front to back 10x, 2 set

 Four square 5x, 2 sets

 Triangle 5x, 2 sets

 Crisscross 5x 2 sets

 Straight line hop 10x 2 set Clinical outcome:

 Hop test

3.3Chronic Ankle Instability

Kondisi cedera sprain ankle yang sudah lebih dari 2-3 bulan tidak pulih sempurna. Ditandai dengan keterbatasan gerak sendi, instabilitas ankle (ADT & Talar Tilt), nyeri saat berjalan & lari.

Pemeriksaan yang dapat dilakukan adalah ROM, Pemeriksaan spesifik, & Ankle Instability Instrument (AII) (min 5 jawaban “Ya”).

(27)

(28)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 28 Chronic Ankle Instability Protokol

Target pemulihan 4-6 minggu Frekuensi 3-4x / minggu Phase 1: ROM & Neuromuscular control 1 minggu

Goals:

 Full ROM Dorsi flexi & plantar flexi

 Decrease pain

 Balance

Physiotherapy programs:

 Distraction grade IIIIV (pain free) 60 x, 10 sec rest, 2 sets

 Dorsal glide grade IIIIV (pain free) 60 x, 10 sec rest, 2 sets

 Isometric Eversi (eccentric) & Inversi (Concentric) 6 sec, 10 x, 3 sets

 Ankle Rhytm 15-20 sec, 2-3 sets

 Towel exercise 4 sets

 Double leg heel raise isometric 6 sec, 10 x, 3 sets

 Double leg bridge 12x, 2 sets

 Miniband series 10x 2 sets

 Single leg stance on wobble lv.1-2 30 sec, 3x, 2 sets

 Single leg stance on balance board perturbation 30 sec, 3x, 2 sets

Clinical Outcome:

 No painfull dorsal flexi & inversi

 Stork test

Phase 2: Advance Strengthening 2-3 minggu

Goals:

 Increase peroneal strength

 Increase flexibility

 Maintain ROM

Physiotherapy Programs:

 Distraction grade IIIIV (pain free) 60 x, 10 sec rest, 2 sets

 Dorsal glide grade IIIIV (pain free) 60 x, 10 sec rest, 2 sets

 4 way Ankle Exc c/ rubber band 15x, 3 sets

 Double/single leg heel raise eccentric (calf & soleus) 10x, 2 sets

 Double/single leg bridge (box) 12x, 2 sets

 Lunges 10x, 2 sets (see ankle dorsi flexion)

 Miniband walk 4 cone 10x, 2 sets

 Single leg stance on bosu 30 sec, 3x, 2 sets

 Single leg stance on wobble touch 3 cone 15x, 2 sets

 Double leg Box jump 10x, 2 sets

 Ladder forward run 10x

Clinical outcome :

 Star excursion balance test (SEBT)

Phase 3: Return to sport 4-6 minggu

Goals:

 No pain running, jump, hopping

 Body conditioning

Physiotherapy programs:

 4 way ankle exc c/rubber

 Side walk straight leg c/rubber 10-15x, 3 sets  Single leg wobble passing/kick 15-20, 3 sets  Single leg deadlift 10-15x, 2-3 set

 Four square hopping

 Front to back 10x, 2 set

 Four square 5x, 2 sets

 Triangle 5x, 2 sets

 Crisscross 5x 2 sets  Straight line hop 10x 2 set

Clinical outcome:

 Hop test

(29)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 29 Brosky, Tony; Nyland, john., Nitz, Art; Caborn, David N.M. 1995. The ankle ligaments: consideration of

syndesmotic injury and impilcations for rehabilitation (clinical commentary). Lexington. JOSPT Volume 21 Number 4 April.

Carl G, Mattacola; Maureen K, Dwyer. 2002. Rehabilitation of the ankle after acute sprain or chronic instability. Lexington. Journal Of Athletic Training. 2002:31(4):413-429.

Carrie L. Docherty; Bruce M. Gansnedert; Brent L. Arnold; Shepard R. Hurwitz. 2006. Development and reliability of the ankle instability instrument. Virginia. Journal of Athletic Training

2006;41(2):154-158.

Donhue. Matthew; Simon. Janet; Docherty. Carrie L. 2011. Critical review of self reported ankle instability measures. Bloomington. Journal of Foot & ankle International. DOI: 10.3113/FAI.2011.1140. Glenn N, Williams; Eric J, Allen. 2010. Rehabilitation of syndesmotic (high) ankle sprain. Lowa. DOI:

10.1177/1941738110384573.

Godges, Joe., Klingman, Robert. Tt. Physical Therapy Protocol for ankle and foot Condition. KP SoCal Ortho PT Residency.

Gribble A. Philip et al. 2014. Selection criteria for patient with chronic ankle instability in controlled research: a position statement of the international ankle consortium. USA. BJSM 2014;48:1014-1018. doi:10.1136/bjsports-2013-093175.

Green, Toni., Refshauge, Kathryn., Crosbie, Jack., Adams, Roger. 2001. A randomized controlled trial of a passive accessory joint mobilization on acute ankle inversion sprain. Australia. PTJournal-APTA

2001; 81:984-994.

Hengeveld, Elly., Banks, Kevin., Wells, Peter. 2005. Maitland’s Peripheral Manipulation 4th_edition. London. Elsevier. Hal 525-575.

Kerkhoffs, Gino M. et al. 2012. Diagnosis, treatment and prevention of ankle sprain: an evidence based clinical guideline. Amsterdam. BJSM doi:10.1136/bjsports-2011-090490.

Lin, Cheng-Feng., Gross, Michael T., Weinhold, Paul. 2006. Ankle syndesmosis injuries: anatomy,

biomechanics, mechanism of injury, and clinical guidelines for diagnosis and intervention. North Carolina. JOSPT doi:10.2519/jospt.2006.2195.

Loudon, Janice K., Bell , Stephania L. 1996. The foot and ankle: an overview of arthrokinematics and selected joint technique. Kansas. Journal of athletic training Vol 31, Number 2, June 1996. McCriskin. Brendan J; Cameron. Kenneth L; Orr. Justin D; Waterman. Brian R. 2015. Management and

prevention of acute and chronic lateral ankle instability in athletic patient populations. United States. World journal of orthopaedic ISSN 2218-5836 (online). DOI: 10.5312/wjo.v6.i2.161.

(30)

SOP-Ankle Joint, ID#ARA 01, Rev 1#| 30 Nn,tt, High ankle sprain (syndesmosis sprain). South Shore Hospital.

O’Driscoll. Jeremiah; Kerin. Fearghal; Delahunt. Eamonn. 2011. Effect of 6 week dynamic neuromuscular training programme on ankle joint function: a case report. Dublin. SMARTT 2011,3:13.

Perry S, Esterson. 1979. Measurement of anle joint swelling using figure of 8. Virginia. JOSPT 0000-0000/79/0001-0051$02.00

Polzer, Hans., Kanz G. Karl., Prall C, Wolf., Haaster, Florian., Ockert, Ben., Mutscher, Wolf., Grote, Stefan. 2012. Diagnosis and treatment of acute ankle injuries: development of an evidence based algorithm. Germany. Orthopedic Review doi:10.4081/or.2012.e5.

Scott A, Lynch. 2002. Assessment of the injured ankle in the athlete. Pennsylvania. Journal of athletic training 2002;37(4):406–412.

Stiell IG, McKnight., Greenberg GH. 1994. Implementation of the Ottawa ankle rules. Canada. Ottawa Health Research Institute. JAMA 1994;271:827-832.

Terada. Masafumi; Pietrosimone. Brian G; Gribble. Philip A. 2013. Therapeutic intervention for increasing ankle dorsiflexion after ankle sprain: a systematic review. Ohio. Journal of athletic training

2013;48(5):696–709. doi: 10.4085/1062-6050-48.4.11.

Thomas W. Kaminski; Heather D. Hartsell. 2002. Factors contributing to chronic ankle instability: a strength perpective. Indianapolis. Journal of Athletic training 2002;37(4):394-405.
