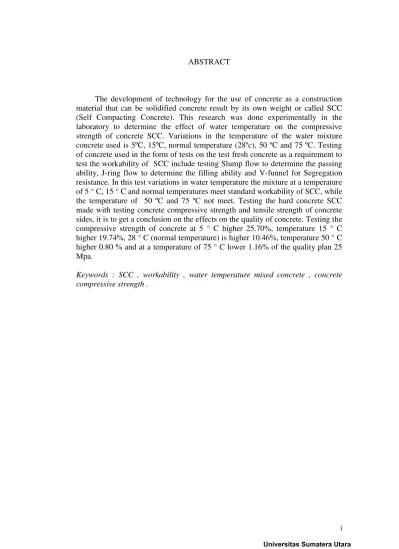

ABSTRACT
The development of technology for the use of concrete as a construction material that can be solidified concrete result by its own weight or called SCC (Self Compacting Concrete). This research was done experimentally in the laboratory to determine the effect of water temperature on the compressive strength of concrete SCC. Variations in the temperature of the water mixture concrete used is 5ºC, 15ºC, normal temperature (28ºc), 50 ºC and 75 ºC. Testing of concrete used in the form of tests on the test fresh concrete as a requirement to test the workability of SCC include testing Slump flow to determine the passing ability, J-ring flow to determine the filling ability and V-funnel for Segregation resistance. In this test variations in water temperature the mixture at a temperature of 5 ° C, 15 ° C and normal temperatures meet standard workability of SCC, while the temperature of 50 ºC and 75 ºC not meet. Testing the hard concrete SCC made with testing concrete compressive strength and tensile strength of concrete sides, it is to get a conclusion on the effects on the quality of concrete. Testing the compressive strength of concrete at 5 ° C higher 25.70%, temperature 15 ° C higher 19.74%, 28 ° C (normal temperature) is higher 10.46%, temperature 50 ° C higher 0.80 % and at a temperature of 75 ° C lower 1.16% of the quality plan 25 Mpa.
Keywords : SCC , workability , water temperature mixed concrete , concrete compressive strength .
ii ABSTRAK
Perkembangan teknologi terhadap pemanfaatan beton sebagai bahan konstruksi menghasilkan beton yang bisa memadat dengan beratnya sendiri atau yang disebut dengan SCC (Self Compacting Concrete.. Penelitian ini dilakukan secara eksperimental di laboratorium yang untuk mengetahui pengaruh temperatur air terhadap kuat tekan beton SCC. Variasi suhu air campuran beton yang digunakan adalah 5ºc, 15ºc, suhu normal (28ºc), 50 ºc dan 75 ºc. Pengujian beton yang digunakan berupa pengujian terhadap pengujian beton segar sebagai persyaratan terhadap pengujian workability SCC antara lain pengujian Slump flow
untuk mengetahui passing ability, J-ring flow untuk mengetahui filling ability dan
V-funnel untuk Segregation Resistance. Pada pengujian ini variasi suhu air campuran pada suhu 5 ºc, 15 ºc dan suhu normal memenuhi persyratan
workability SCC, sedangkan untuk suhu 50 ºc dan 75 ºc tidak memenuhi. Pengujian beton keras SCC dilakukan dengan pengujian kuat tekan beton dan kuat tarik belah beton, hal ini untuk mendapatkan kesimpulan terhadap pengaruhnya terhadap mutu beton. Pengujian kuat tekan beton pada suhu 5°c lebih tinggi 25,70%, suhu 15°c lebih tingggi 19,74%, 28°c (suhu normal) lebih tinggi 10,46%, suhu 50°c lebih tinggi 0,80% dan pada suhu 75°c lebih rendah 1,16% dari mutu rencana 25 Mpa.
Kata kunci: SCC, workability, suhu air campuran beton, kuat tekan beton.
