vii
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Ami Andayani, 2017.
Rancangan Grafik Acuan Pertumbuhan Tinggi Badan
dan Indeks Massa Tubuh Balita di Kabupaten Lamongan dengan Pendekatan
Estimator
Spline Truncated
Birespon
,
Skripsi dibawah bimbingan Dr. Nur
Chamidah, M.Si dan Ir. Elly Ana, M.Si, Prodi S1-Statistika, Departemen
Matematika, Fakultas Sains dan Teknologi, Universitas Airlangga, Surabaya

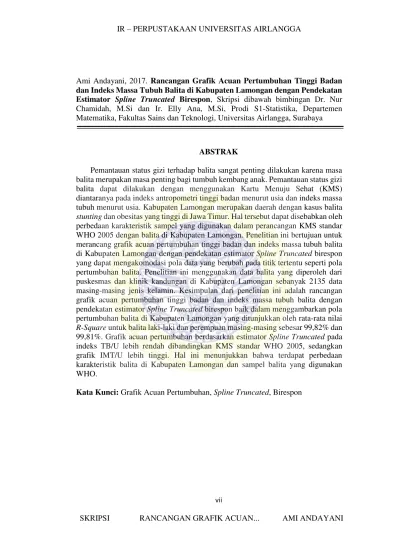

ABSTRAK
Pemantauan status gizi terhadap balita sangat penting dilakukan karena masa
balita merupakan masa penting bagi tumbuh kembang anak. Pemantauan status gizi
balita dapat dilakukan dengan menggunakan Kartu Menuju Sehat (KMS)
diantaranya pada indeks antropometri tinggi badan menurut usia dan indeks massa
tubuh menurut usia. Kabupaten Lamongan merupakan daerah dengan kasus balita
stunting
dan obesitas yang tinggi di Jawa Timur. Hal tersebut dapat disebabkan oleh
perbedaan karakteristik sampel yang digunakan dalam perancangan KMS standar
WHO 2005 dengan balita di Kabupaten Lamongan. Penelitian ini bertujuan untuk
merancang grafik acuan pertumbuhan tinggi badan dan indeks massa tubuh balita
di Kabupaten Lamongan dengan pendekatan estimator
Spline Truncated
birespon
yang dapat mengakomodasi pola data yang berubah pada titik tertentu seperti pola
pertumbuhan balita. Penelitian ini menggunakan data balita yang diperoleh dari
puskesmas dan klinik kandungan di Kabupaten Lamongan sebanyak 2135 data
masing-masing jenis kelamin. Kesimpulan dari penelitian ini adalah rancangan
grafik acuan pertumbuhan tinggi badan dan indeks massa tubuh balita dengan
pendekatan estimator
Spline
Truncated
birespon baik dalam menggambarkan pola
pertumbuhan balita di Kabupaten Lamongan yang ditunjukkan oleh rata-rata nilai
R-Square
untuk balita laki-laki dan perempuan masing-masing sebesar 99,82% dan
99,81%. Grafik acuan pertumbuhan berdasarkan estimator
Spline Truncated
pada
indeks TB/U lebih rendah dibandingkan KMS standar WHO 2005, sedangkan
grafik IMT/U lebih tinggi. Hal ini menunjukkan bahwa terdapat perbedaan
karakteristik balita di Kabupaten Lamongan dan sampel balita yang digunakan
WHO.
viii
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Ami Andayani, 2017.
Design Chart of Child Standard Growth for Heigh and
Body Mass Index in Lamongan Regency
based on Spline
Truncated
Birespon
Estimator Approach
, This thesis is under the guidance of Dr. Nur Chamidah, M.Si
and Ir. Elly Ana, M. Si, S1-Statistics Courses, Mathematics Department, Faculty of
Science and Technology, Airlangga University, Surabaya
ABSTRACT
Monitoring the nutritional status of child is very important because the
childhood is an important period for child growth. Monitoring the nutritional status
of under-five child can be done by using child growth chart standard called
Kartu
Menuju Sehat
(KMS), such as the anthropometry index of height for age and body
mass index for age. Lamongan regency is an area with high stunting and obesity
children in East Java. It can be caused by the characteristics of samples for
designing the child growth chart standard by WHO 2005 with children in
Lamongan regency. This study aims to design the growth chart standard of heigh
and body mass index in Lamongan regency based on Spline Truncated birespon
estimator approach that can accommodate the patterns of data that change at certain
points such as the child growth. This study uses data of children under five obtained
from health centers and clinics in Lamongan regency consist of 2135 data for each
gender. The conclusion of this research is the design of growth chart standard for
height and body mass index of child under five with Spline Truncated birespon
estimator approach good in depicting the growth of children in Lamongan Regency,
it is shown by the average of R-Square value for men and women child each obtain
by 99,82% and 99,81%. The growth chart standard based on Spline Truncated
estimator on H/A index is lower than The growth chart standard from WHO 2005,
ndicates that the chart is below the KMS based on WHO 2005, but it is higher on
BMI/A index. It indicates that there are differences characteristics between children
in Lamongan regency and the samples used by WHO.
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Lampiran 6.
Kombinasi Titik Knot, Orde, MSE, dan GSE Tinggi Badan dan Indeks
Massa Tubuh Balita
Persentil Tinggi Badan Indeks Massa Tubuh
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Lampiran 7.
Program Estimasi Tinggi Badan dan Indeks Massa Tubuh Balita
dengan
Pendekatan Estimator
Spline Truncated
Birespon
mp<-function(x,eps=1e-006)
p1<-as.numeric(readline("Orde Tinggi Badan = "))
k1<-as.numeric(readline("Banyak Knot Tinggi Badan = ")) w1<-rep(0,k1)
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
R1<-1-(JKG1/JKT1)
cat("MSE Estimasi TB dengan Spline Truncated Unirespon =",MSE1,"\n")
cat("GCV Estimasi TB dengan Spline Truncated Unirespon =",GCV1,"\n")
cat("R-Square Estimasi TB dengan Spline Truncated Unirespon =",R1,"\n")
cat("\n")
#Error Indeks Massa Tubuh e2<-rep(0,n)
p2<-as.numeric(readline("Orde Indeks Massa Tubuh = "))
k2<-as.numeric(readline("Banyak Knot Indeks Massa Tubuh = ")) w2<-rep(0,k2)
cat("Jumlah Knot Indeks Massa Tubuh = ",k2,"\n") v12<-matrix(0,n,p2+1)
cat("MSE Estimasi IMT dengan Spline Truncated Unirespon =",MSE2,"\n")
cat("GCV Estimasi IMT dengan Spline Truncated Unirespon =",GCV2,"\n")
cat("R-Square Estimasi IMT dengan Spline Truncated Unirespon =",R2,"\n")
plot(x,y1,xlab="Usia",ylab="TB",type="p") lines(x,ytopi1,xlab="Usia",ylab="TB") title(main="U VS TB UNIRESPON") cat("\n")
win.graph()
plot(x,y2,xlab="Usia",ylab="IMT",type="p") lines(x,ytopi2,xlab="Usia",ylab="IMT") title(main="U VS IMT UNIRESPON") win.graph()
#Membuat Matriks Pembobot W E<-rep(0,2,n)
E<-cbind(er1,er2) VC<-rep(0,2,2) VC<-var(E)
cat("Var-Covar TB dan IMT \n") print(VC)
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
W2<-cbind(b,d) W<-rbind(W1,W2)
#Weighted Spline Truncated Birespon n<-length(x)
cat("=============================\n Nilai Betatopi Tinggi Badan \n =============================\n") for(i in 1:(p1+k1+1))
{
cat("Beta",i-1,"=",betatopi[i],"\n") }
cat("\n")
cat("===================================\n") cat("Nilai Betatopi Indeks Massa Tubuh \n") cat("====================================\n")
cat("HASIL ESTIMASI TINGGI BADAN DAN INDEKS MASSA TUBUH BALITA\n") cat("=========================================\n")
cat("Usia \t\t TB \t\t IMT \n")
cat("=========================================\n")
cat("MSE Estimasi TB dan IMT dengan Spline Truncated Birespon =",MSE,"\n")
cat("GCV Estimasi TB dan IMT dengan Spline Truncated Birespon =",GCV,"\n")
cat("R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon =",R,"\n")
plot(x,y1,xlab="Usia",ylab="TB",type="p")
lines(x,Y1,xlab="Usia",ylab="TB",col="red",lwd=3) title(main="PLOT USIA TERHADAP TINGGI BADAN") win.graph()
plot(x,y2,xlab="Usia",ylab="IMT",type="p")
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Balita Laki-Laki:
1.
P3
Orde Tinggi Badan = 1
Banyak Knot Tinggi Badan = 3 Jumlah Knot Tinggi Badan = 3 Titik knots[ 1 ] = 12
Titik knots[ 2 ] = 36 Titik knots[ 3 ] = 48
MSE Estimasi TB dengan Spline Truncated Unirespon = 4.367902 GCV Estimasi TB dengan Spline Truncated Unirespon = 5.182705 R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9734129
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 3 Jumlah Knot Indeks Massa Tubuh = 3 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12 Titik knots[ 3 ] = 48
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.3620817 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.4453904 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.5301371
Var-Covar TB dan IMT [,1] [,2] [1,] 4.4407005 0.3429389 [2,] 0.3429389 0.3681164
============================= Nilai Betatopi Tinggi Badan ============================= Nilai Betatopi Indeks Massa Tubuh ====================================
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
PLOT USIA TERHADAP TINGGI BADAN
0 10 20 30 40 50 60
PLOT USIA TERHADAP INDEKS MASSA TUBUH
2.
P15
Orde Tinggi Badan = 1
Banyak Knot Tinggi Badan = 2 Jumlah Knot Tinggi Badan = 2 Titik knots[ 1 ] = 12
Titik knots[ 2 ] = 48
MSE Estimasi TB dengan Spline Truncated Unirespon = 3.255013 GCV Estimasi TB dengan Spline Truncated Unirespon = 3.727886 R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9820574
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.3535375 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.4194876 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.5124048
Var-Covar TB dan IMT [,1] [,2] [1,] 3.3092631 0.1108217 [2,] 0.1108217 0.3594298
============================= Nilai Betatopi Tinggi Badan ============================= Beta 0 = 48.68564
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Beta 2 = -1.133202 Beta 3 = -0.3600208
=================================== Nilai Betatopi Indeks Massa Tubuh ====================================
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.967005 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.706814 R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9984539
0 10 20 30 40 50 60
PLOT USIA TERHADAP TINGGI BADAN
0 10 20 30 40 50 60
PLOT USIA TERHADAP INDEKS MASSA TUBUH
3.
P50
Orde Tinggi Badan = 2
Banyak Knot Tinggi Badan = 3 Jumlah Knot Tinggi Badan = 3 Titik knots[ 1 ] = 12
Titik knots[ 2 ] = 36 Titik knots[ 3 ] = 48
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.2640547 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.3133124 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.7528588
Var-Covar TB dan IMT [,1] [,2] [1,] 1.4032885 -0.1005828 [2,] -0.1005828 0.2684556
============================= Nilai Betatopi Tinggi Badan ============================= Nilai Betatopi Indeks Massa Tubuh ====================================
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.966438 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.926846 R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9993484
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
PLOT USIA TERHADAP TINGGI BADAN
0 10 20 30 40 50 60
PLOT USIA TERHADAP INDEKS MASSA TUBUH
4.
P85
Orde Tinggi Badan = 2
Banyak Knot Tinggi Badan = 3 Jumlah Knot Tinggi Badan = 3 Titik knots[ 1 ] = 12
Titik knots[ 2 ] = 36 Titik knots[ 3 ] = 48
MSE Estimasi TB dengan Spline Truncated Unirespon = 2.845615 GCV Estimasi TB dengan Spline Truncated Unirespon = 3.500341 R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9866329
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.6646945 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.7886889 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.6146752
Var-Covar TB dan IMT [,1] [,2] [1,] 2.8930416 0.2035764 [2,] 0.2035764 0.6757727
============================= Nilai Betatopi Tinggi Badan ============================= Nilai Betatopi Indeks Massa Tubuh ====================================
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.966315 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.926664 R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9987238
0 10 20 30 40 50 60
PLOT USIA TERHADAP TINGGI BADAN
0 10 20 30 40 50 60
PLOT USIA TERHADAP INDEKS MASSA TUBUH
5.
P97
Orde Tinggi Badan = 2
Banyak Knot Tinggi Badan = 2 Jumlah Knot Tinggi Badan = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 48
MSE Estimasi TB dengan Spline Truncated Unirespon = 8.246721 GCV Estimasi TB dengan Spline Truncated Unirespon = 9.785092 R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9646279
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 1.573733 GCV Estimasi IMT dengan Spline Truncated Unirespon = 1.867303 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.5268341
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
============================= Nilai Betatopi Tinggi Badan ============================= Nilai Betatopi Indeks Massa Tubuh ====================================
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.967081 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.814113 R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9966234
0 10 20 30 40 50 60
PLOT USIA TERHADAP TINGGI BADAN
0 10 20 30 40 50 60
PLOT USIA TERHADAP INDEKS MASSA TUBUH
Balita Perempuan:
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
spline(p3)
Orde Tinggi Badan = 1
Banyak Knot Tinggi Badan = 1 Jumlah Knot Tinggi Badan = 1 Titik knots[ 1 ] = 12
MSE Estimasi TB dengan Spline Truncated Unirespon = 7.497564 GCV Estimasi TB dengan Spline Truncated Unirespon = 8.293232 R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.953006
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 4 Jumlah Knot Indeks Massa Tubuh = 4 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12 Titik knots[ 3 ] = 36 Titik knots[ 4 ] = 48
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.4907978 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.626289 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.4352542
Var-Covar TB dan IMT [,1] [,2] [1,] 7.62252290 0.03899703 [2,] 0.03899703 0.49897780
============================= Nilai Betatopi Tinggi Badan ============================= Beta 0 = 46.84019
Beta 1 = 1.574573 Beta 2 = -0.9946034
=================================== Nilai Betatopi Indeks Massa Tubuh ====================================
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
16 68.05494 13.03636 17 68.63491 13.03272 18 69.21488 13.026 19 69.79485 13.01619 20 70.37482 13.00329 21 70.95479 12.9873 22 71.53476 12.96823 23 72.11472 12.94607 24 72.69469 12.92083 25 73.27466 12.8925 26 73.85463 12.86108 27 74.4346 12.82657 28 75.01457 12.78898 29 75.59454 12.7483 30 76.17451 12.70454 31 76.75448 12.65768 32 77.33445 12.60774 33 77.91442 12.55472 34 78.49439 12.49861 35 79.07436 12.43941 36 79.65432 12.37712 37 80.23429 12.32025 38 80.81426 12.27728 39 81.39423 12.24823 40 81.9742 12.23309 41 82.55417 12.23185 42 83.13414 12.24453 43 83.71411 12.27112 44 84.29408 12.31161 45 84.87405 12.36602 46 85.45402 12.43434 47 86.03399 12.51656 48 86.61396 12.6127 49 87.19393 12.69932 50 87.77389 12.753 51 88.35386 12.77374 52 88.93383 12.76154 53 89.5138 12.7164 54 90.09377 12.63831 55 90.67374 12.52729 56 91.25371 12.38332 57 91.83368 12.20641 58 92.41365 11.99656 59 92.99362 11.75377 60 93.57359 11.47804
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
PLOT USIA TERHADAP TINGGI BADAN
0 10 20 30 40 50 60
PLOT USIA TERHADAP INDEKS MASSA TUBUH
2.
P15
spline(p15)
Orde Tinggi Badan = 1
Banyak Knot Tinggi Badan = 1 Jumlah Knot Tinggi Badan = 1 Titik knots[ 1 ] = 12
MSE Estimasi TB dengan Spline Truncated Unirespon = 4.421328 GCV Estimasi TB dengan Spline Truncated Unirespon = 4.890535 R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9747061
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.2486558 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.2950408 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.6500529
Var-Covar TB dan IMT [,1] [,2] [1,] 4.4950166 0.1390965 [2,] 0.1390965 0.2528000
============================= Nilai Betatopi Tinggi Badan ============================= Beta 0 = 47.96937
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Beta 2 = -1.167715
=================================== Nilai Betatopi Indeks Massa Tubuh ====================================
HASIL ESTIMASI TINGGI BADAN DAN INDEKS MASSA TUBUH BALITA
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.966867 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.605451 R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9979315
0 10 20 30 40 50 60
PLOT USIA TERHADAP TINGGI BADAN
0 10 20 30 40 50 60
PLOT USIA TERHADAP INDEKS MASSA TUBUH
3.
P50
spline(p50)
Orde Tinggi Badan = 2
Banyak Knot Tinggi Badan = 4 Jumlah Knot Tinggi Badan = 4 Titik knots[ 1 ] = 12
Titik knots[ 2 ] = 24 Titik knots[ 3 ] = 36 Titik knots[ 4 ] = 48
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9929754
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.2896803 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.3437182 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.6690736
Var-Covar TB dan IMT [,1] [,2] [1,] 1.3774088 -0.2135251 [2,] -0.2135251 0.2945083
============================= Nilai Betatopi Tinggi Badan ============================= Nilai Betatopi Indeks Massa Tubuh ====================================
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.964507 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 3.044536 R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9993376
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
PLOT USIA TERHADAP TINGGI BADAN
0 10 20 30 40 50 60
PLOT USIA TERHADAP INDEKS MASSA TUBUH
4.
P85
spline(p85)
Orde Tinggi Badan = 2
Banyak Knot Tinggi Badan = 3 Jumlah Knot Tinggi Badan = 3 Titik knots[ 1 ] = 12
Titik knots[ 2 ] = 24 Titik knots[ 3 ] = 48
MSE Estimasi TB dengan Spline Truncated Unirespon = 1.897553 GCV Estimasi TB dengan Spline Truncated Unirespon = 2.334147 R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9907951
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.8139059 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.9657346 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.4890965
Var-Covar TB dan IMT [,1] [,2] [1,] 1.9291791 -0.1536733 [2,] -0.1536733 0.8274710
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
59 108.2766 16.71482 60 109.4637 16.64491
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.966535 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.926991 R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9989963
0 10 20 30 40 50 60
PLOT USIA TERHADAP TINGGI BADAN
0 10 20 30 40 50 60
PLOT USIA TERHADAP INDEKS MASSA TUBUH
5.
P97
spline(p97)
Orde Tinggi Badan = 2
Banyak Knot Tinggi Badan = 2 Jumlah Knot Tinggi Badan = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 48
MSE Estimasi TB dengan Spline Truncated Unirespon = 4.445837 GCV Estimasi TB dengan Spline Truncated Unirespon = 5.275179 R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9804109
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 1.538394 GCV Estimasi IMT dengan Spline Truncated Unirespon = 1.825371 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.4826773
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
[2,] -0.1846153 1.5640336
============================= Nilai Betatopi Tinggi Badan ============================= Nilai Betatopi Indeks Massa Tubuh ====================================
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.967065 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.814091 R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9978969
0 10 20 30 40 50 60
PLOT USIA TERHADAP TINGGI BADAN
0 10 20 30 40 50 60
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Lampiran 9.
Program perbandingan status gizi balita berdasarkan grafik acuan
pertumbuhan tinggi badan dan indeks massa tubuh balita dengan
pendekatan spline truncated birespon dibandingkan dengan KMS
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
cat("PERBANDINGAN STATUS GIZI BALITA TB/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005\n")
cat("============================================\n") cat("STATUS GIZI\t KMS Lamongan\t KMS WHO\n")
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
if(data1[i,3]<data2[j,17]) ow=ow+1
else if(data1[i,3]<data2[j,18]) pw=pw+1
else if(data1[i,3]<data2[j,20]) qw=qw+1
else if(data1[i,3]<data2[j,21]) rw=rw+1
else sw=sw+1 }
} }
ow1=(ow/n1)*100 pw1=(pw/n1)*100 qw1=(qw/n1)*100 rw1=(rw/n1)*100 sw1=(sw/n1)*100
cat("PERBANDINGAN STATUS GIZI BALITA IMT/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005\n")
cat("============================================\n") cat("STATUS GIZI\t KMS Lamongan\t KMS WHO\n")
cat("============================================\n") cat("Sangat Kurus\t=",o1,"% \t",ow1,"%\n")
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Lampiran
10.
Hasil perbandingan penentuan status gizi berdasarkan grafik acuan
pertumbuhan tinggi badan dan indeks massa tubuh balita dengan
pendekatan estimator Spline Truncated dan KMS WHO 2005
1. Balita Laki-Laki status(data,kurva)
PERBANDINGAN STATUS GIZI BALITA IMT/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005 ============================================
STATUS GIZI KMS Lamongan KMS WHO
============================================ Sangat Pendek = 5.901639 % 36.20609 %
Pendek = 11.38173 % 21.87354 % Normal = 67.30679 % 36.01874 % Tinggi = 10.53864 % 3.325527 %
Sangat Tinggi = 4.871194 % 2.576112 %
PERBANDINGAN STATUS GIZI BALITA TB/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005 ============================================
STATUS GIZI KMS Lamongan KMS WHO
============================================ Sangat Kurus = 4.777518 % 8.009368 %
Kurus = 12.13115 % 10.96019 % Normal = 66.69789 % 54.00468 % Gemuk = 11.52225 % 15.40984 % Obesitas = 4.871194 % 11.61593 % 2. Balita Perempuan
status(data2,kurva2)
PERBANDINGAN STATUS GIZI BALITA IMT/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005 ============================================
STATUS GIZI KMS Lamongan KMS WHO
============================================ Sangat Pendek = 5.57377 % 33.86417 %
Pendek = 10.96019 % 21.68618 % Normal = 67.54098 % 36.62763 % Tinggi = 10.96019 % 4.824356 %
Sangat Tinggi = 4.964871 % 2.997658 %
PERBANDINGAN STATUS GIZI BALITA TB/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005 ============================================
STATUS GIZI KMS Lamongan KMS WHO
============================================ Sangat Kurus = 4.824356 % 8.711944 %
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Lampiran
11.
Program Interface Penentuan Status Gizi Balita pada OSS-R
#PROGRAM TAMPILAN JENDELA AWAL require(tcltk)
jendela<-tktoplevel()
tktitle(jendela)<-"Penentuan Status Gizi Balita" topmenu<-tkmenu(jendela)
tkgrid(tklabel(jendela,text="PENENTUAN STATUS GIZI TB/U DAN IMT/U",font=teks1),sticky="news")
tkgrid(tklabel(jendela,text="BERDASARKAN KMS WHO DAN KMS LAMONGAN",font=teks1),sticky="news")
tkgrid(tklabel(jendela,text="")) tkgrid(tklabel(jendela,image=im))
tkgrid(tklabel(jendela,text="Oleh : Ami Andayani",font=teks3),sticky="news") tkgrid(tklabel(jendela,text=""))
#PROGRAM TAMPILAN JENDELA IDENTITAS BALITA fungsiInput<-function()
{
tkdestroy(jendela) require(tcltk)
jendela1<-tktoplevel()
tktitle(jendela1)<-"Input Data Balita "
teks4<-tkfont.create(family="sans",size=12,weight="bold")
tkgrid(tklabel(jendela1,text="Nama Lengkap Balita \t: "),eb1,sticky="w") usia<-tclVar("")
eb2<-tkentry(jendela1,width="8",textvariable=usia)
tkgrid(tklabel(jendela1,text="Usia Balita (Bulan) \t: "),eb2,sticky="w") rb1<-tkradiobutton(jendela1)
rb2<-tkradiobutton(jendela1) rbValue<-tclVar("Laki-Laki")
tkconfigure(rb1,variable=rbValue,value="Laki-Laki") tkconfigure(rb2,variable=rbValue,value="Perempuan")
tkgrid(tklabel(jendela1,text="Jenis Kelamin \t\t: "),sticky="w") tkgrid(tklabel(jendela1,text="Laki-Laki"),rb1,sticky="w")
tkgrid(tklabel(jendela1,text="Perempuan"),rb2,sticky="w") tkgrid(tklabel(jendela1,text=""))
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
tkgrid(tklabel(jendela1,text="---"),tklabel(jendela1,text="---"))
bb<-tclVar("")
eb3<-tkentry(jendela1,width="8",textvariable=bb)
tkgrid(tklabel(jendela1,text="Berat Badan Balita (Kg)\t: "),eb3,sticky="w") tb<-tclVar("")
eb4<-tkentry(jendela1,width="8",textvariable=tb)
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Jenis Kelamin : Laki-Laki Berat Badan :",bba,"kg Tinggi Badan :",tba,"cmIndeks Massa Tubuh :",imtb,"kg/m^2 STATUS BALITA
Status Gizi Berdasarkan KMS Lamongan: Status TB :",LTB,"
Status IMT :",LIMT,"
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Jenis Kelamin : Perempuan Berat Badan :",bba,"kg Tinggi Badan :",tba,"cmIndeks Massa Tubuh :",imtb,"kg/m^2 STATUS BALITA
Status Gizi Berdasarkan KMS Lamongan: Status TB :",LTB,"
Status IMT :",LIMT,"
Status Gizi Berdasarkan KMS WHO : Status TB :",WTB,"
Status IMT :",WIMT," "))
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
title(main="Grafik TB/U Balita Laki-Laki") }
title(main="Grafik TB/U Balita Perempuan") }
title(main="Grafik IMT/U Balita Laki-Laki") }
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
title(main="Grafik IMT/U Balita Perempuan") }
title(main="Grafik TB/U Balita Laki-Laki") }
title(main="Grafik TB/U Balita Perempuan") }
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
else {
require(png)
img<-readPNG(system.file("img","IMTPRWHO.png",package="png")) r=as.raster(img[,,1:3])
r[img[,,3]==0]="white"
plot(1:10,xlab="Usia (Bulan)",ylab="IMT/U (cm)",axes=FALSE,type="n") rasterImage(r,1,1,10,10)
op<-par(new=T)
plot(usiaa,imtb,pch=19,xlim=c(0,60),ylim=c(0,25),ann=FALSE,new=T,col="red") par(op)
title(main="Grafik IMT/U Balita Perempuan") }
}
tkgrid(tklabel(jendela1,text=""))
tombolhasil<-tkbutton(jendela1,text="STATUS GIZI",command=fungsihasil) tkgrid(tklabel(jendela1,text=" "))
tkgrid(tombolhasil)
tkgrid(tklabel(jendela1,text=" "))
tombolTBLA<-tkbutton(jendela1,text="GRAFIK TB-LAMONGAN",command=TBLA) tkgrid(tombolTBLA)
tombolIMTLA<-tkbutton(jendela1,text="GRAFIK IMT-LAMONGAN",command=IMTLA) tkgrid(tombolIMTLA)
tombolTBWHO<-tkbutton(jendela1,text="GRAFIK TB-WHO",command=TBWHO) tkgrid(tombolTBWHO)
tombolIMTWHO<-tkbutton(jendela1,text="GRAFIK IMT-WHO",command=IMTWHO) tkgrid(tombolIMTWHO)
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Lampiran 10.
Hasil perbandingan penentuan status gizi berdasarkan grafik acuan
pertumbuhan tinggi badan dan indeks massa tubuh balita dengan
pendekatan estimator Spline Truncated dan KMS WHO
2005
1.
Balita Laki-Laki
status(data,kurva)
PERBANDINGAN STATUS GIZI BALITA IMT/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005 ============================================
PERBANDINGAN STATUS GIZI BALITA TB/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005 ============================================
PERBANDINGAN STATUS GIZI BALITA IMT/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005 ============================================
PERBANDINGAN STATUS GIZI BALITA TB/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005 ============================================
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.967005 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.706814 R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9984539
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
0 10 20 30 40 50 60
Usia
U VS IMT UNIRESPON
1
PLOT USIA TERHADAP TINGGI BADAN
PLOT USIA TERHADAP INDEKS MASSA TUBUH
1
Banyak Knot Tinggi Badan = 3
Jumlah Knot Tinggi Badan = 3
Titik knots[ 1 ] = 12
Titik knots[ 2 ] = 36
Titik knots[ 3 ] = 48
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.2640547 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.3133124
R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.7528588
Var-Covar TB dan IMT
[,1] [,2]
[1,] 1.4032885 -0.1005828
[2,] -0.1005828 0.2684556
============================= Nilai Betatopi Tinggi Badan ============================= Nilai Betatopi Indeks Massa Tubuh ====================================
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
21 80.06715 16.43575
22 80.82439 16.41205
23 81.579 16.38764
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.966438 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.926846 R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9993484
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
PLOT USIA TERHADAP TINGGI BADAN PLOT USIA TERHADAP INDEKS MASSA TUBUH
100
19
Banyak Knot Tinggi Badan = 3
Jumlah Knot Tinggi Badan = 3
Titik knots[ 1 ] = 12 Titik knots[ 2 ] = 36 Titik knots[ 3 ] = 48
MSE Estimasi TB dengan Spline Truncated Unirespon = 2.845615 GCV Estimasi TB dengan Spline Truncated Unirespon = 3.500341 R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9866329
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.6646945 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.7886889 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.6146752
Var-Covar TB dan IMT
[,1] [,2]
[1,] 2.8930416 0.2035764 [2,] 0.2035764 0.6757727
============================= Nilai Betatopi Tinggi Badan ============================= Nilai Betatopi Indeks Massa Tubuh ==================================== Beta 0 = 14.88952
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Beta 4 = -0.07047365
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
56 106.9042 17.04861
57 108.4089 16.99157
58 110.0851 16.93315
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
60 113.9519 16.81216
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.966315 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.926664 R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9987238
U VS TB UNIRESPON
U VS IMT UNIRESPON
2
PLOT USIA TERHADAP TINGGI BADAN
PLOT USIA TERHADAP INDEKS MASSA TUBUH
2
Banyak Knot Tinggi Badan = 2
Jumlah Knot Tinggi Badan = 2
Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 48
MSE Estimasi TB dengan Spline Truncated Unirespon = 8.246721 GCV Estimasi TB dengan Spline Truncated Unirespon = 9.785092
R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9646279
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2
Titik knots[ 1 ] = 6
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi IMT dengan Spline Truncated Unirespon = 1.573733 GCV Estimasi IMT dengan Spline Truncated Unirespon = 1.867303 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.5268341Var-Covar TB dan IMT
[,1] [,2]
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
[2,] 0.3800003 1.5999623
============================= Nilai Betatopi Tinggi Badan ============================= Nilai Betatopi Indeks Massa Tubuh ====================================
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
35 99.71081 19.55148
36 100.2083 19.51568
37 100.6759 19.47759
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.967081 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.814113
R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9966234
U VS TB UNIRESPON
U VS IMT UNIRESPON
24
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
PLOT USIA TERHADAP INDEKS MASSA TUBUH
24
22
IM
T
20
18
16
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Balita Perempuan:
1. P3
spline(p3)
Orde Tinggi Badan = 1
Banyak Knot Tinggi Badan = 1
Jumlah Knot Tinggi Badan = 1
Titik knots[ 1 ] = 12
MSE Estimasi TB dengan Spline Truncated Unirespon = 7.497564 GCV Estimasi TB dengan Spline Truncated Unirespon = 8.293232 R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.953006
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 4 Jumlah Knot Indeks Massa Tubuh = 4
Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
Titik knots[ 3 ] = 36
Titik knots[ 4 ] = 48
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.4907978 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.626289 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.4352542
Var-Covar TB dan IMT
[,1] [,2]
[1,] 7.62252290 0.03899703 [2,] 0.03899703 0.49897780
============================= Nilai Betatopi Tinggi Badan ============================= Beta 0 = 46.84019
Beta 1 = 1.574573 Beta 2 = -0.9946034
=================================== Nilai Betatopi Indeks Massa Tubuh ==================================== Beta 5 = 0.008498418 Beta 6 = -0.02342568
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
9 61.01134 13.2953
10 62.58592 13.13555
11 64.16049 13.04379
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.967208 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.814295
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
U VS TB UNIRESPON U VS IMT UNIRESPON
1 5
9 0
1 4
8 0
TB 7 0 1 3
6 0 1 2
5 0 1 1
0 10 20 30 40 50 60 0 10 20 30 40 50 60
Usia Usia
PLOT USIA TERHADAP TINGGI BADAN
90
80
TB 70
60
50
0 10 20 30 40 50 60 Usia
PLOT USIA TERHADAP INDEKS MASSA TUBUH
15
14
IM
T
13
12
11
0 10 20 30 40 50 60 Usia
2. P15
spline(p15)
Orde Tinggi Badan = 1
Banyak Knot Tinggi Badan = 1
Jumlah Knot Tinggi Badan = 1
Titik knots[ 1 ] = 12
MSE Estimasi TB dengan Spline Truncated Unirespon = 4.421328 GCV Estimasi TB dengan Spline Truncated Unirespon = 4.890535
R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9747061
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2
Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.2486558 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.2950408
R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.6500529
Var-Covar TB dan IMT
[,1] [,2]
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
============================= Nilai Betatopi Tinggi Badan ============================= Beta 0 = 47.96937
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Beta 2 = -1.167715
=================================== Nilai Betatopi Indeks Massa Tubuh ====================================
HASIL ESTIMASI TINGGI BADAN DAN INDEKS MASSA TUBUH BALITA
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
43 87.71364 13.48718
44 88.31205 13.47038
45 88.91047 13.4547
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.966867 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.605451
R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9979315
U VS TB UNIRESPON U VS IMT UNIRESPON
PLOT USIA TERHADAP INDEKS MASSA TUBUH
16
Banyak Knot Tinggi Badan = 4
Jumlah Knot Tinggi Badan = 4
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Titik knots[ 2 ] = 24
Titik knots[ 3 ] = 36
Titik knots[ 4 ] = 48
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9929754
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.2896803 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.3437182
R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.6690736
Var-Covar TB dan IMT
[,1] [,2]
[1,] 1.3774088 -0.2135251
[2,] -0.2135251 0.2945083
============================= Nilai Betatopi Tinggi Badan ============================= Nilai Betatopi Indeks Massa Tubuh ====================================
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
19 78.26771 16.12476
20 78.988 16.09929
21 79.66962 16.07344
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.964507 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 3.044536
R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9993376
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
PLOT USIA TERHADAP TINGGI BADAN PLOT USIA TERHADAP INDEKS MASSA TUBUH
100 18
Banyak Knot Tinggi Badan = 3
Jumlah Knot Tinggi Badan = 3
Titik knots[ 1 ] = 12
Titik knots[ 2 ] = 24
Titik knots[ 3 ] = 48
MSE Estimasi TB dengan Spline Truncated Unirespon = 1.897553 GCV Estimasi TB dengan Spline Truncated Unirespon = 2.334147
R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9907951
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2 Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
MSE Estimasi IMT dengan Spline Truncated Unirespon = 0.8139059 GCV Estimasi IMT dengan Spline Truncated Unirespon = 0.9657346 R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.4890965
Var-Covar TB dan IMT
[,1] [,2]
[1,] 1.9291791 -0.1536733
[2,] -0.1536733 0.8274710
============================= Nilai Betatopi Tinggi Badan ============================= Nilai Betatopi Indeks Massa Tubuh ==================================== Beta 0 = 15.6487
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
55 104.3847 16.9812
56 105.2291 16.91659
57 106.1593 16.85065
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
59 108.2766 16.71482
60 109.4637 16.64491
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.966535 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.926991
R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9989963
U VS TB UNIRESPON
U VS IMT UNIRESPON
21
PLOT USIA TERHADAP TINGGI BADAN
PLOT USIA TERHADAP INDEKS MASSA TUBUH
21
Banyak Knot Tinggi Badan = 2
Jumlah Knot Tinggi Badan = 2
Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 48
MSE Estimasi TB dengan Spline Truncated Unirespon = 4.445837 GCV Estimasi TB dengan Spline Truncated Unirespon = 5.275179
R-Square Estimasi TB dengan Spline Truncated Unirespon = 0.9804109
Orde Indeks Massa Tubuh = 2
Banyak Knot Indeks Massa Tubuh = 2 Jumlah Knot Indeks Massa Tubuh = 2
Titik knots[ 1 ] = 6
Titik knots[ 2 ] = 12
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
R-Square Estimasi IMT dengan Spline Truncated Unirespon = 0.4826773Var-Covar TB dan IMT
[,1] [,2]
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
[2,] -0.1846153 1.5640336
============================= Nilai Betatopi Tinggi Badan ============================= Nilai Betatopi Indeks Massa Tubuh ====================================
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
35 99.35152 19.82125
36 99.91113 19.78513
37 100.4427 19.74588
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
MSE Estimasi TB dan IMT dengan Spline Truncated Birespon = 1.967065 GCV Estimasi TB dan IMT dengan Spline Truncated Birespon = 2.814091
R-Square Estimasi TB dan IMT dengan Spline Truncated Birespon = 0.9978969
U VS TB UNIRESPON
U VS IMT UNIRESPON
24
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
PLOT USIA TERHADAP INDEKS MASSA TUBUH
24
22
IM
T
20
18
16
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Lampiran 9.
Program perbandingan status gizi balita berdasarkan grafik acuan
pertumbuhan tinggi badan dan indeks massa tubuh balita dengan
pendekatan spline truncated birespon dibandingkan dengan
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
cw=cw+1
else if(data1[i,2]<data2[j,16]) dw=dw+1
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
cat("PERBANDINGAN STATUS GIZI BALITA TB/U BERDASARKAN KMS LAMONGAN DAN
KMS WHO 2005\n")
cat("============================================\n") cat("STATUS GIZI\t KMS Lamongan\t KMS WHO\n")
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
if(data1[i,1]==data2[j,1]) {
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
else if(data1[i,3]<data2[j,18]) pw=pw+1
else if(data1[i,3]<data2[j,20]) qw=qw+1
else if(data1[i,3]<data2[j,21]) rw=rw+1
else sw=sw+1 }
} }
ow1=(ow/n1)*100 pw1=(pw/n1)*100 qw1=(qw/n1)*100 rw1=(rw/n1)*100 sw1=(sw/n1)*100
cat("PERBANDINGAN STATUS GIZI BALITA IMT/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005\n")
cat("============================================\n") cat("STATUS GIZI\t KMS Lamongan\t KMS WHO\n")
cat("============================================\n") cat("Sangat Kurus\t=",o1,"% \t",ow1,"%\n")
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Lampiran 10.
Hasil perbandingan penentuan status gizi berdasarkan grafik
acuan
pertumbuhan tinggi badan dan indeks massa tubuh balita
dengan pendekatan estimator Spline Truncated dan KMS WHO
2005
1.
Balita Laki-Laki
status(data,kurva)
PERBANDINGAN STATUS GIZI BALITA IMT/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005
============================================
STATUS GIZI KMS Lamongan KMS WHO
============================================
Sangat Pendek = 5.901639 % 36.20609 %
Pendek = 11.38173 % 21.87354 %
Normal = 67.30679 % 36.01874 %
Tinggi = 10.53864 % 3.325527 %
Sangat Tinggi = 4.871194 % 2.576112 %
PERBANDINGAN STATUS GIZI BALITA TB/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005
============================================
STATUS GIZI KMS Lamongan KMS WHO
============================================
Sangat Kurus = 4.777518 % 8.009368 %
Kurus = 12.13115 % 10.96019 %
Normal = 66.69789 % 54.00468 %
Gemuk = 11.52225 % 15.40984 %
Obesitas = 4.871194 % 11.61593 %
2.
Balita Perempuan
status(data2,kurva2)
PERBANDINGAN STATUS GIZI BALITA IMT/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005
============================================
STATUS GIZI KMS Lamongan KMS WHO
============================================
Sangat Pendek = 5.57377 % 33.86417 %
Pendek = 10.96019 % 21.68618 %
Normal = 67.54098 % 36.62763 %
Tinggi = 10.96019 % 4.824356 %
Sangat Tinggi = 4.964871 % 2.997658 %
PERBANDINGAN STATUS GIZI BALITA TB/U BERDASARKAN KMS LAMONGAN DAN KMS WHO 2005
============================================
STATUS GIZI KMS Lamongan KMS WHO
============================================
Sangat Kurus = 4.824356 % 8.711944 %
Kurus = 11.61593 % 12.74005 %
Normal = 68.10304 % 52.45902 %
Gemuk = 10.35129 % 13.58314 %
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Lampiran 11.
Program Interface Penentuan Status Gizi Balita pada OSS-R
#PROGRAM TAMPILAN JENDELA AWAL require(tcltk)
jendela<-tktoplevel()
tktitle(jendela)<-"Penentuan Status Gizi Balita" topmenu<-tkmenu(jendela)
tkgrid(tklabel(jendela,text="PENENTUAN STATUS GIZI TB/U DAN IMT/U",font=teks1),sticky="news")
tkgrid(tklabel(jendela,text="BERDASARKAN KMS WHO DAN KMS LAMONGAN",font=teks1),sticky="news")
#PROGRAM TAMPILAN JENDELA IDENTITAS BALITA fungsiInput<-function() {
tkdestroy(jendela) require(tcltk)
jendela1<-tktoplevel()
tktitle(jendela1)<-"Input Data Balita "
teks4<-tkfont.create(family="sans",size=12,weight="bold")
tkgrid(tklabel(jendela1,text="Nama Lengkap Balita \t: "),eb1,sticky="w") usia<-tclVar("")
eb2<-tkentry(jendela1,width="8",textvariable=usia)
tkgrid(tklabel(jendela1,text="Usia Balita (Bulan) \t: "),eb2,sticky="w") rb1<-tkradiobutton(jendela1)
rb2<-tkradiobutton(jendela1) rbValue<-tclVar("Laki-Laki")
tkconfigure(rb1,variable=rbValue,value="Laki-Laki") tkconfigure(rb2,variable=rbValue,value="Perempuan")
tkgrid(tklabel(jendela1,text="Jenis Kelamin \t\t: "),sticky="w") tkgrid(tklabel(jendela1,text="Laki-Laki"),rb1,sticky="w")
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
tkgrid(tklabel(jendela1,text=""))
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
tkgrid(tklabel(jendela1,text="--- "),tklabel(jendela1,text="---"))
bb<-tclVar("")
eb3<-tkentry(jendela1,width="8",textvariable=bb)
tkgrid(tklabel(jendela1,text="Berat Badan Balita (Kg)\t: "),eb3,sticky="w")
tb<-tclVar("")
eb4<-tkentry(jendela1,width="8",textvariable=tb)
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
wtb<-tclVar("NORMAL") else if(tba<dataa[j,16]) wtb<-tclVar("TINGGI") else
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Jenis Kelamin : Laki-Laki
Berat Badan :",bba,"kg
Tinggi Badan :",tba,"cm
Indeks Massa Tubuh :",imtb,"kg/m^2
STATUS BALITA
Status Gizi Berdasarkan KMS Lamongan:
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
else
statustb<-tclVar("SANGAT TINGGI") }
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
Jenis Kelamin : Perempuan
Berat Badan :",bba,"kg
Tinggi Badan :",tba,"cm
Indeks Massa Tubuh :",imtb,"kg/m^2
STATUS BALITA
Status Gizi Berdasarkan KMS Lamongan:
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
")) } }
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
title(main="Grafik TB/U Balita Laki-Laki") }
title(main="Grafik TB/U Balita Perempuan") }
title(main="Grafik IMT/U Balita Laki-Laki") }
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
{
require(png)
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
title(main="Grafik IMT/U Balita Perempuan") }
title(main="Grafik TB/U Balita Laki-Laki") }
title(main="Grafik TB/U Balita Perempuan") }
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
else {
require(png)
SKRIPSI
RANCANGAN GRAFIK ACUAN...
AMI ANDAYANI
r=as.raster(img[,,1:3]) r[img[,,3]==0]="white"
plot(1:10,xlab="Usia (Bulan)",ylab="IMT/U (cm)",axes=FALSE,type="n") rasterImage(r,1,1,10,10)
op<-par(new=T)
plot(usiaa,imtb,pch=19,xlim=c(0,60),ylim=c(0,25),ann=FALSE,new=T,col="red ")
par(op)
title(main="Grafik IMT/U Balita Perempuan") }
}
tkgrid(tklabel(jendela1,text=""))
tombolhasil<-tkbutton(jendela1,text="STATUS GIZI",command=fungsihasil) tkgrid(tklabel(jendela1,text=" "))
tkgrid(tombolhasil)
tkgrid(tklabel(jendela1,text=" "))
tombolTBLA<-tkbutton(jendela1,text="GRAFIK TB-LAMONGAN",command=TBLA) tkgrid(tombolTBLA)
tombolIMTLA<-tkbutton(jendela1,text="GRAFIK IMT-LAMONGAN",command=IMTLA) tkgrid(tombolIMTLA)
tombolTBWHO<-tkbutton(jendela1,text="GRAFIK TB-WHO",command=TBWHO) tkgrid(tombolTBWHO)
tombolIMTWHO<-tkbutton(jendela1,text="GRAFIK IMT-WHO",command=IMTWHO) tkgrid(tombolIMTWHO)
